600-6000MHz Paddle 5G NR Antenna 4G LTE 3G 2G Ultra Wideband Antenna For 5G Gateway
Antenna Performance
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
698-960/1575-2700/3300-3800/5125-5925MHz |
|
Gain |
3.08/3.28/4.84/3.43dBi |
|
|
V.S.W.R |
≤2.0 |
|
|
Impendance |
50Ω |
|
|
Antenna size |
196*38mm or customized size |
|
|
Polarization |
Vertical |
|
|
Mechanical |
Inner Material |
PCB/Copper tube |
|
Connector type |
SMA/RP-SMA or customizable |
|
|
Mounting Method |
SMA screw |
|
|
Environmental |
Operating Temperature |
-40℃~+80℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
|
Environmentally Friendly |
ROHS Compliant |
|

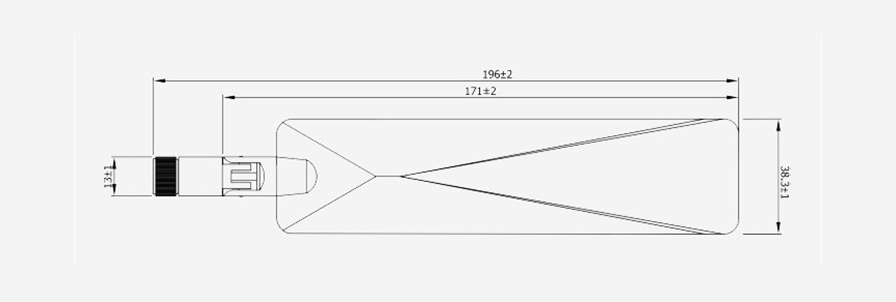

5G NR Antenna Drawing

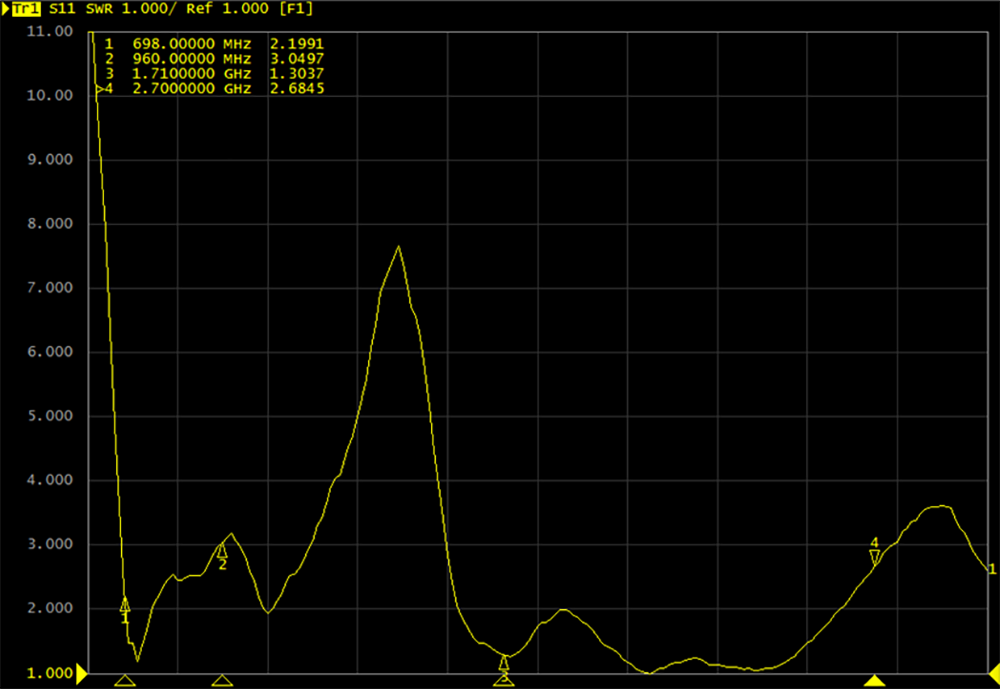

5G Antenna V.S.W.R

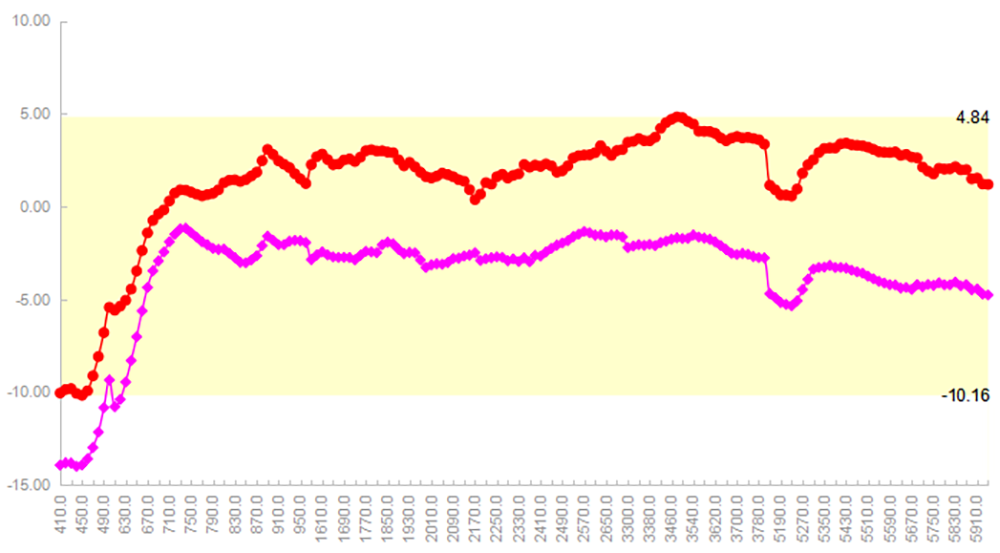

5G NR Antenna Peak Gain

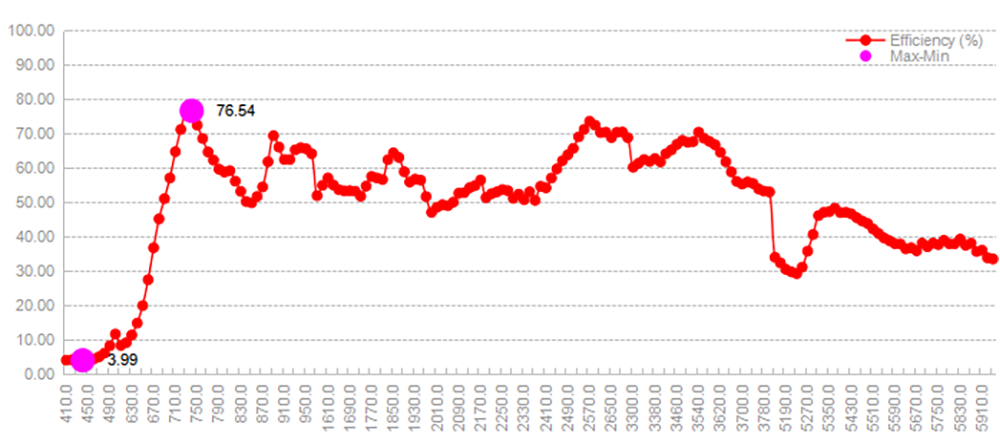

5G NR Antenna Efficiency

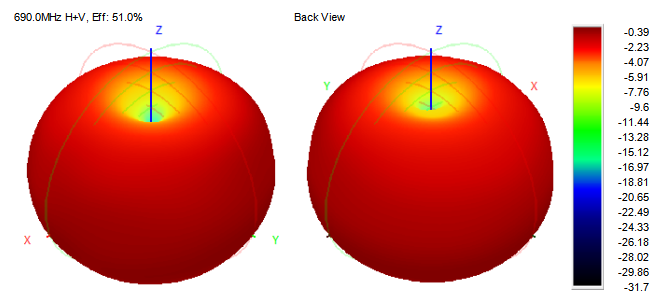

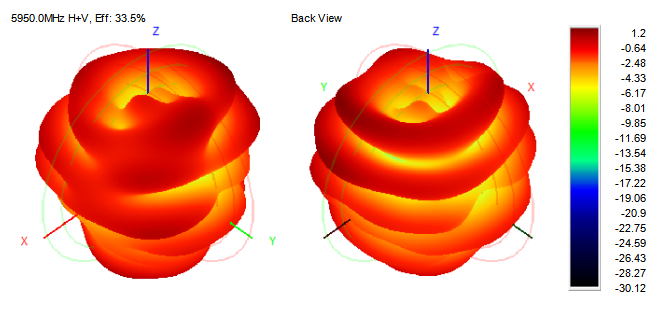

5G Antenna 3D&2D Radiation Patterns
Application Parameters
This 5G Paddle antenna was designed to improve signal strength with longer range, and performance suitable for Low Power Wide Area Network 5G pplications where devices require constant connectivity within frequencies operating between 698MHz-960MHz, 1710MHz-2170Mhz and 2500MHz-2700Mhz, 3300-3800MHz/5125-5925MHz
The 5G NRA antenna can be used for GSM, CDMA, GPRS, WCDMA, UMTS, HSPA, EVDO and LTE (NB-IoT) technologies operating within 5G 4G LTE, 3G, and 2G standards.
Typical Applications
-Telematic
- Wireless terminal
- Fleet management
- Routers
- Logistics
-Smart home
- Self-driving car
- Gateways
- Public transportation
- And others
