3dBi External Antenan GSM Rubber 920MHz Lora Antenna
Antenna Performance
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
800-920/1710-1900MHz |
|
Gain |
3.25 /3.35dBi |
|
|
V.S.W.R |
≤3.5 |
|
|
Impendance |
50Ω |
|
|
Antenna size |
108mm or customized size |
|
|
Polarization |
Vertical |
|
|
Mechanical |
Inner Material |
PCB/Copper tube |
|
Connector type |
SMA/RP-SMA or customizable |
|
|
Mounting Method |
SMA screw |
|
|
Environmental |
Operating Temperature |
-40℃~+80℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
|
Environmentally Friendly |
ROHS Compliant |
|
GSM Lora Antenna Drawing
GSM Lora Antenna V.S.W.R
GSM Lora Antenna Peak Gain
GSM Lora Antenna Efficiency

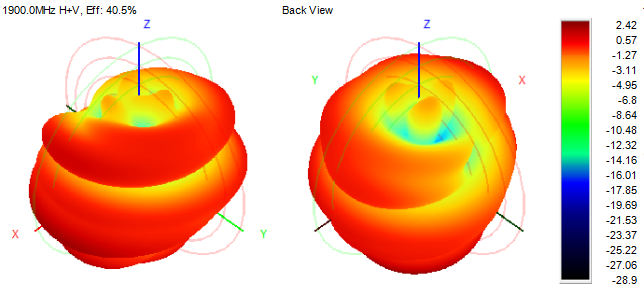

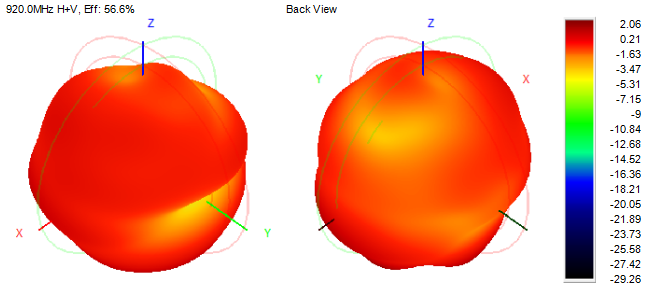

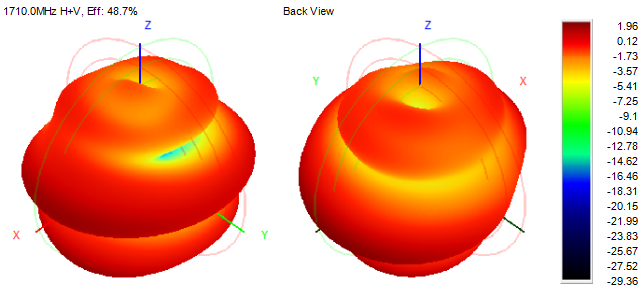

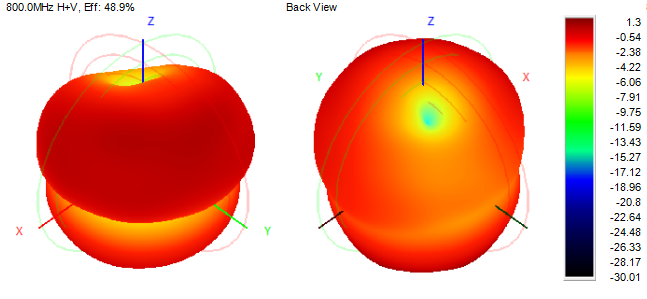

Lora Antenna 3D&2D Radiation Patterns
GSM Antenna Parameters
GSM Antenna strengthens your GSM connection significantly, this increases the signal strength, the signal stability and thus the transmission rate of the connection. Provides a 3.5 dBi gain and works with 900-1800 MHz frequency, The antenna uses an SMA Male connector compatible with network devices that use SMA Female connector. Can be used with various types of modems, access points, terminals, routers and other devices. the antenna can do RP-SMA Male connector, Please make sure your device has an SMA Female connector or RP-SMA female connector. the gsm rubber antenna is omnidirection, Wireless transmitting or receiving antenna that sends or receives radio frequency (RF) and electromagnetic fields as well in all horizontal directions in a flat, two-dimensional (2D) geometric plane
Typical Applications
-Telematic
- Wireless terminal
- Fleet management
- Routers
- Logistics
-Smart home
- Self-driving car
- Gateways
- Public transportation
- And others
FAQ
What's your company MOQ?
Donot has any MOQ for common product, if they are customizable products, we will ask at least 1000-5000pcs, this we can negotiate if you contact us right now.
Can your company accept customize?
Welcome OEM & ODM, the 50MM right angle can custom frequency according to your request, please share us your request details, such as antenna frequency, gain, V.S.W.R, antenna length and mount type, we will advise suitable antenna solution for you.
What's your delivery time?
Products can send out once receive your deposit If we have stock, if they are customizable products, delivery time is around 7-12 working days, if your order is urgent, please let us know, cowin antenna would like to discuss and solve it together with you.
Can you send samples for us to test?
Yes, we can provide free samples if they are our common products, shipping cost will be paid by you, you need to pay samples fee if they are customizable products, high quality and good service are cowin antenna company culture, With cowin antenna your order and money are safe.
