Rubber Omni 2.4GHz Antenna SMA Foldable 5dBi 2.4G WIFI Antenna
Antenna Performance
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
2400-2500MHz |
|
Gain |
5.0dBi |
|
|
V.S.W.R |
≤2.0 |
|
|
Impendance |
50Ω |
|
|
Antenna size |
195mm or customized size |
|
|
Polarization |
Vertical |
|
|
Mechanical |
Inner Material |
PCB/Copper tube |
|
Connector type |
SMA/RP-SMA or customizable |
|
|
Mounting Method |
SMA screw |
|
|
Environmental |
Operating Temperature |
-40℃~+80℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
|
Environmentally Friendly |
ROHS Compliant |
|

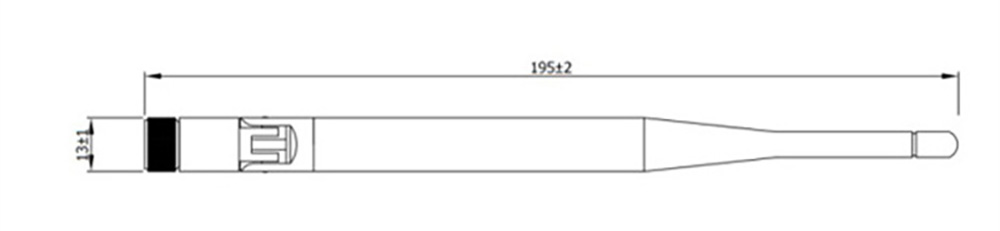

2.4G Antenna Drawing

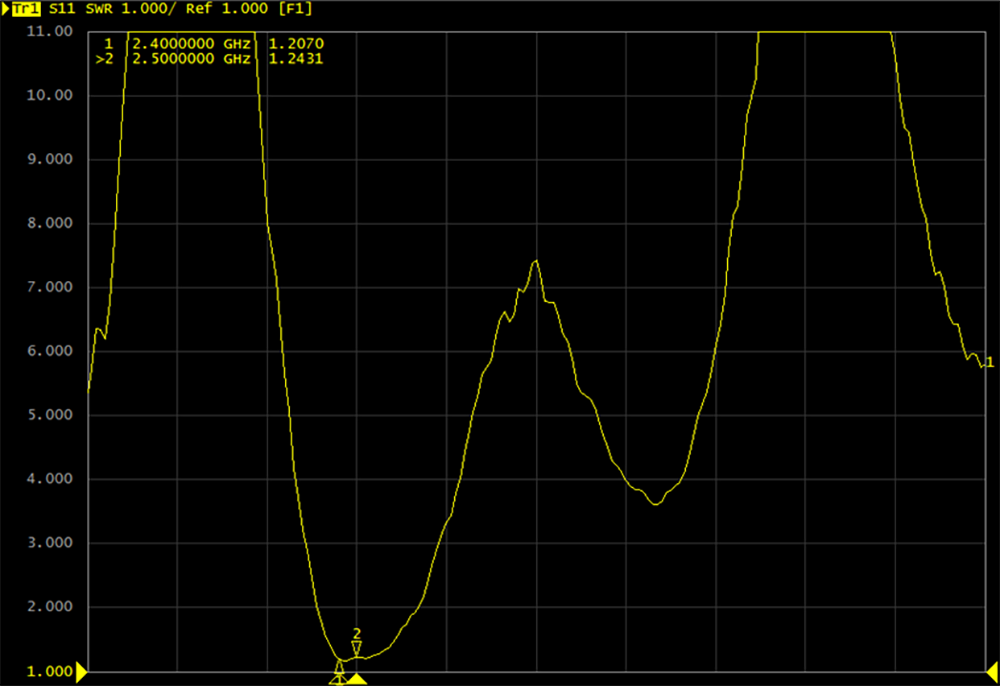

2.4G Antenna V.S.W.R

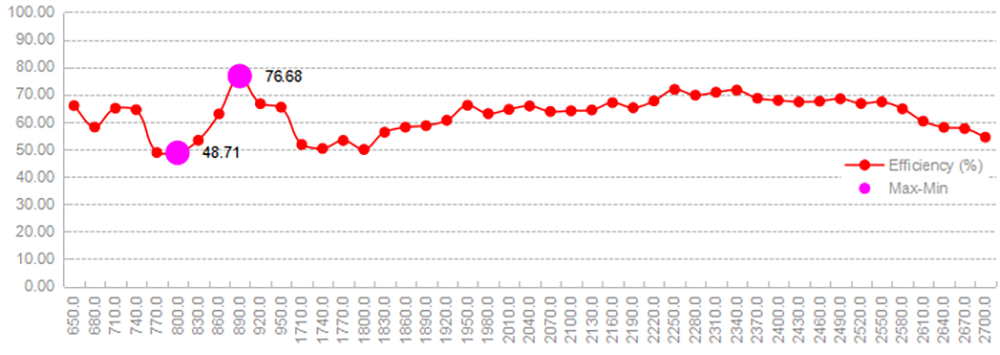

2.4G Antenna Efficiency

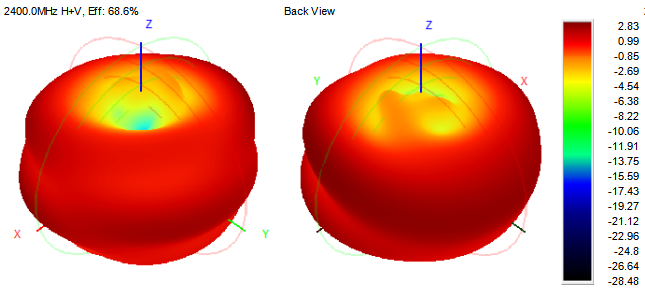

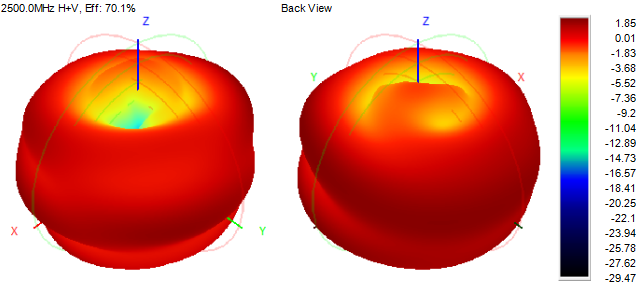

2.4G Antenna 3D&2D Radiation Patterns
Application Parameters
Easily Removable Antenna for security camera, router or other 2.4G wireless device, extends the WiFi signal range to cover the signal dead spot. Installation direction can be adjusted easily for any angle. 5dBi WiFi signal booster. replacement for typically 2dBi WiFi devices’ antenna and increase their signal strength, 2.4GHz( 2.400-2.4835GHz), 802.11 b/g/n, Plug and Play. Fits for most of IP camera/router like Dericam/FDT/Qcam, SMA MALE connector. ( NOT RP-SMA) Please make sure the connector is suitable for your devices before purchase, or contact us to confirm antenna connector type.
Typical Applications
-Telematic
- Wireless terminal
- Fleet management
- Routers
- Logistics
-Smart home
- Self-driving car
- Gateways
- Public transportation
- And others
FAQ
What's your company MOQ?
Donot has any MOQ for common product, if they are customizable products, we will ask at least 1000-5000pcs, this we can negotiate if you contact us right now.
Can your company accept customize?
Welcome OEM & ODM, the 50MM right angle can custom frequency according to your request, please share us your request details, such as antenna frequency, gain, V.S.W.R, antenna length and mount type, we will advise suitable antenna solution for you.
What's your delivery time?
Products can send out once receive your deposit If we have stock, if they are customizable products, delivery time is around 7-12 working days, if your order is urgent, please let us know, cowin antenna would like to discuss and solve it together with you.
Can you send samples for us to test?
Yes, we can provide free samples if they are our common products, shipping cost will be paid by you, you need to pay samples fee if they are customizable products, high quality and good service are cowin antenna company culture, With cowin antenna your order and money are safe.
