CDMA GSM 2G 3G LTE 4G FPC Antenna, Flexible PCB Internal 4G LTE Antenna
Antenna Performance
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
698-960/1710-2700MHz |
|
Gain |
3.82dBi / 3.77dBi |
|
|
V.S.W.R |
≤2.5 |
|
|
Impendance |
50Ω |
|
|
Antenna size |
98*14mm or customized size |
|
|
Polarization |
Vertical |
|
|
Mechanical |
Inner Material |
PCB |
|
Connector type |
IPEX/IPEX MHF4 or customizable |
|
|
Mounting Method |
3M adhesive |
|
|
Environmental |
Operating Temperature |
-40℃~+80℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
|
Environmentally Friendly |
ROHS Compliant |
|

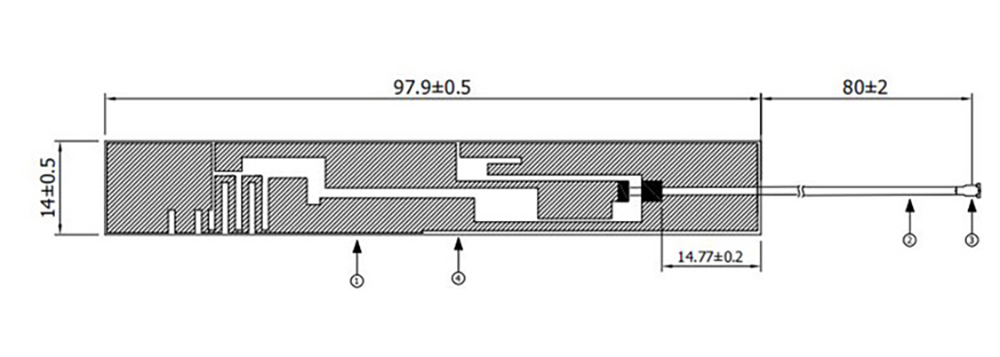

Internal 4G Antenna Drawing

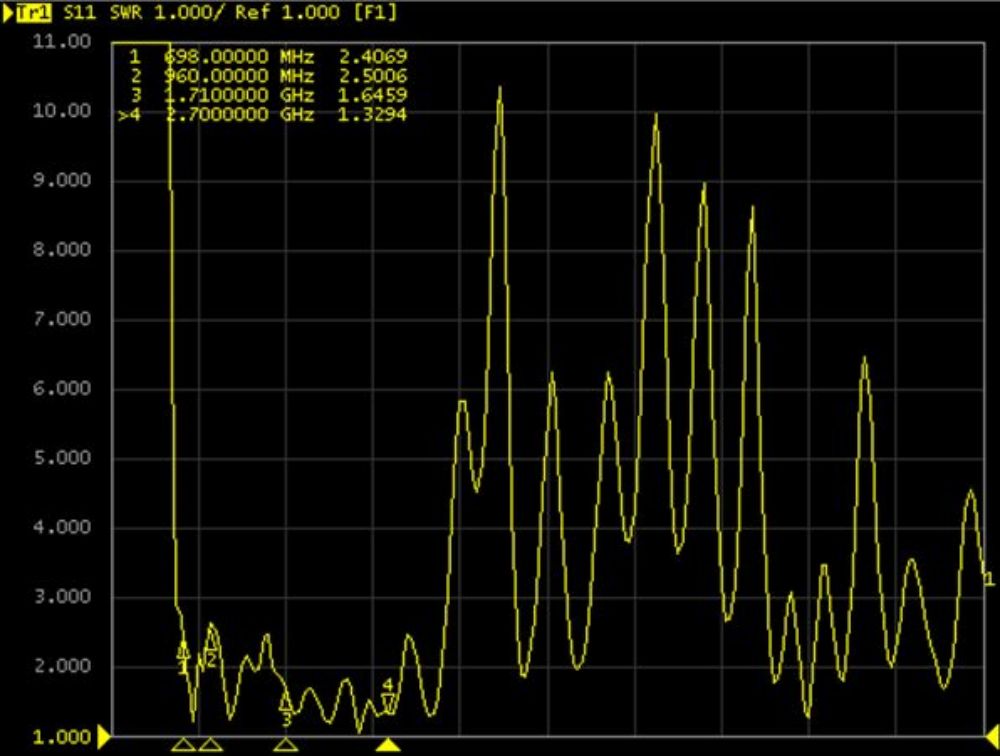

Internal 4G Antenna V.S.W.R

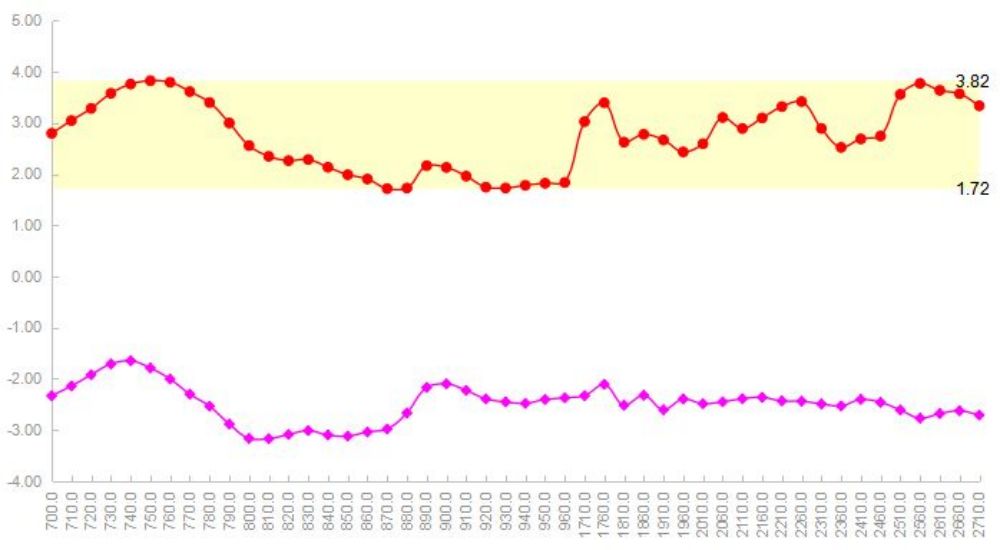

4G FPC Antenna Peak Gain

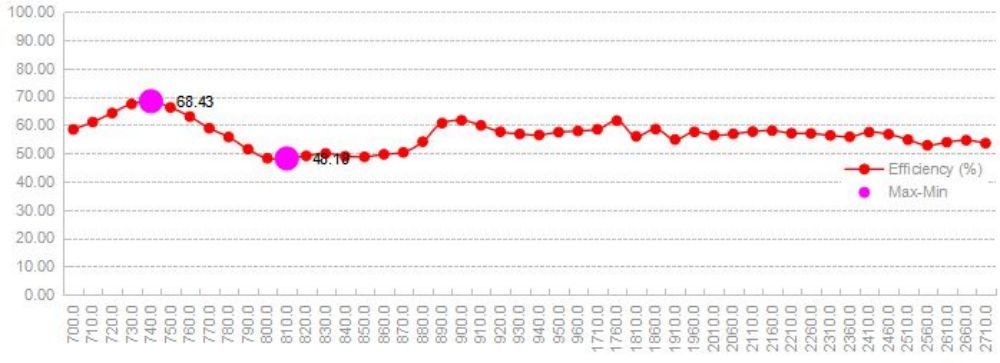

LTE FPC Antenna Efficiency

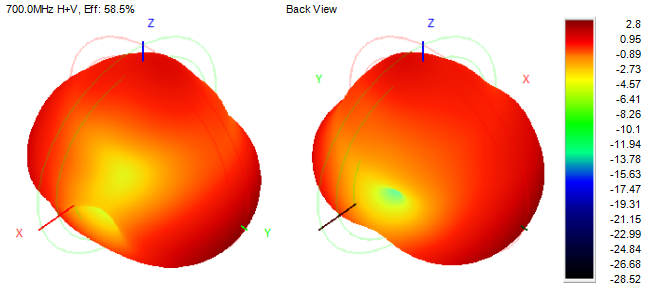

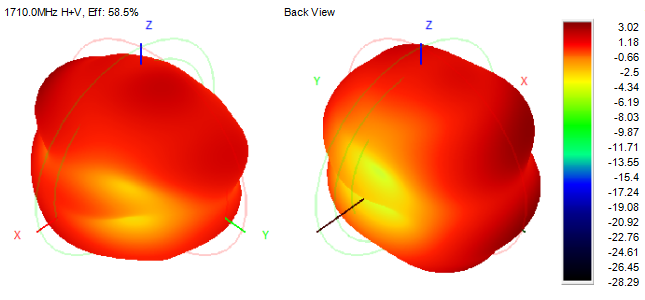

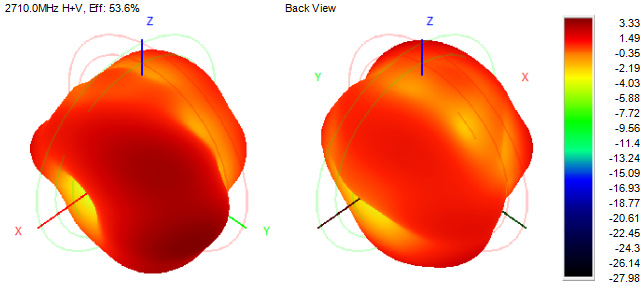

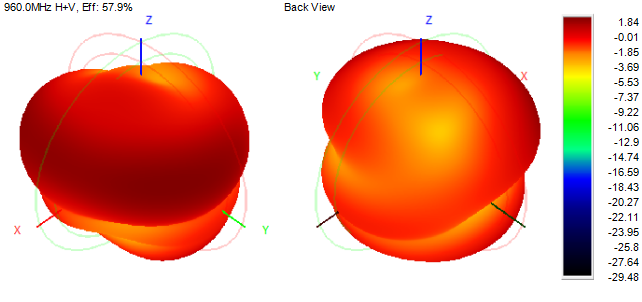

4G FPC Antenna 3D&2D Radiation Patterns
4G FPC Antenna Description
A Wide Band with 700-2700Mhz frequency range, 4G LTE antenna provides a wide enough range for a number of applications including BLE & LoRa/RF. This antenna is 98*14mm with 100mm length coaxial cable ending in an IPEX (u.FL equivalent) connector. This antenna is completely flexible with adhesive mount suitable for vending machines, power meters, equipment sheds, or other applications requiring a low-profile internal antenna
100% Satisfaction Guarantee: We are committed to providing customers with the best product and services. If you have any question, please feel free to contact us and if the product has any quality issue, we're happy to offer you a new one!
Typical Applications
-Telematic
- Wireless terminal
- Fleet management
- Routers
- Logistics
-Smart home
- Self-driving car
- Gateways
- Public transportation
- And others
FAQ
What's your company MOQ?
Donot has any MOQ for common product, if they are customizable products, we will ask at least 1000-5000pcs, this we can negotiate if you contact us right now.
Can your company accept customize?
Welcome OEM & ODM, the 50MM right angle can custom frequency according to your request, please share us your request details, such as antenna frequency, gain, V.S.W.R, antenna length and mount type, we will advise suitable antenna solution for you.
What's your delivery time?
Products can send out once receive your deposit If we have stock, if they are customizable products, delivery time is around 7-12 working days, if your order is urgent, please let us know, cowin antenna would like to discuss and solve it together with you.
Can you send samples for us to test?
Yes, we can provide free samples if they are our common products, shipping cost will be paid by you, you need to pay samples fee if they are customizable products, high quality and good service are cowin antenna company culture, With cowin antenna your order and money are safe.
