400-6G full frequency coverage, 80% radiation efficiency; 500+different sizes, different shapes, waterproof and explosion-proof internal and external antennas; Customized as needed, free samples in 1-3 days; It has a 300-member system factory and delivers goods in 7 days.

306*306*25MM 12/15dBi 2.4/5.8G Outdoor Directional Panel Antenna with 4*N Female Connector

Specification:

1. 15dBi peak gain
2. Adjustable flap width
3. ABS housing, meets UL94V-0
4. Outdoor waterproof/UV protection
5. Selectable frequencies/connectors








Product Detail

Product Tags

Outdoor Antenna Specification

Item Specifications
Antenna  Frequency range 2400-2500/5150-5850MHz
Gain 12/15dBi
V.S.W.R ≤1.5/2.0
Impedance 50Ω
Polarization Vertical
Power 50W
Mechanical  Inner structure Brass vibrator
External structure ABS
Antenna size 306*306*25MM
Cable type N/A
Connector type N female or optional
Mounting method Pole mount
Environmental  Operating temperature -40℃~+80℃
Storage temperature  -40℃~+85℃
Environmentally friendly ROHS compliant

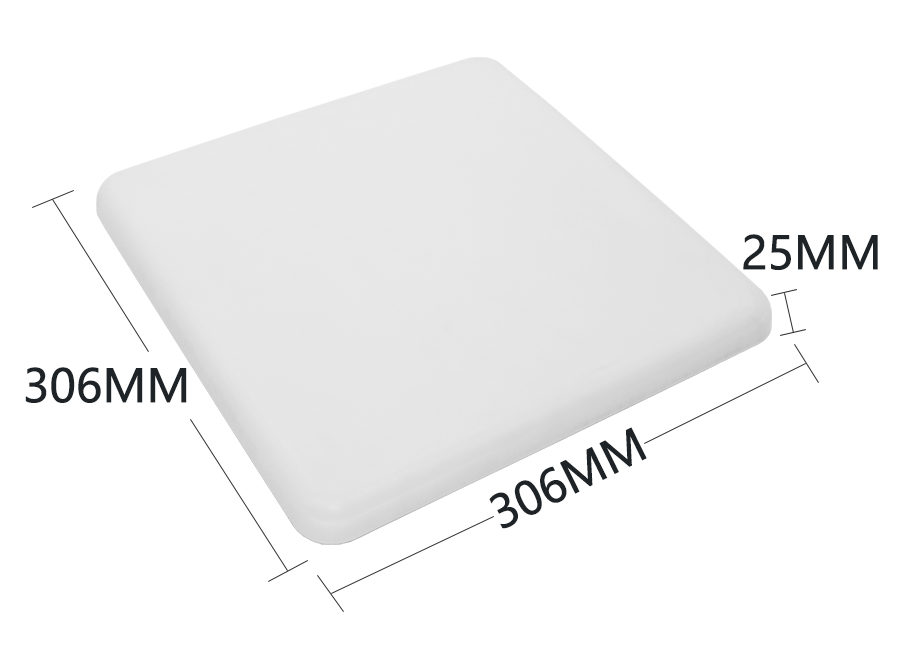

Outdoor Antenna Size

4
