35*7MM 3dBi GSM Internal Flexible FPC Antenna

Specification:

1. IOT module antenna
2. Up to 60-80% transmission efficiency, stronger transmitting and receiving signals.
3. Frequency and size can be adjusted according to the internal space of the mainframe.
4. Strong adhesive backing, anti-wrinkle and high temperature resistance.

Send email to us

Product Detail

Product Tags

Internal FPC Antenna Specification

Item		Specifications
Antenna	Frequency range	800-900/1800-1900MHz
	Gain	3dBi
	V.S.W.R	≤2.0
	Impedance	50Ω
	Polarization	Vertical
	Power	10W
Mechanical	Inner structure	FPC
	External structure	N/A

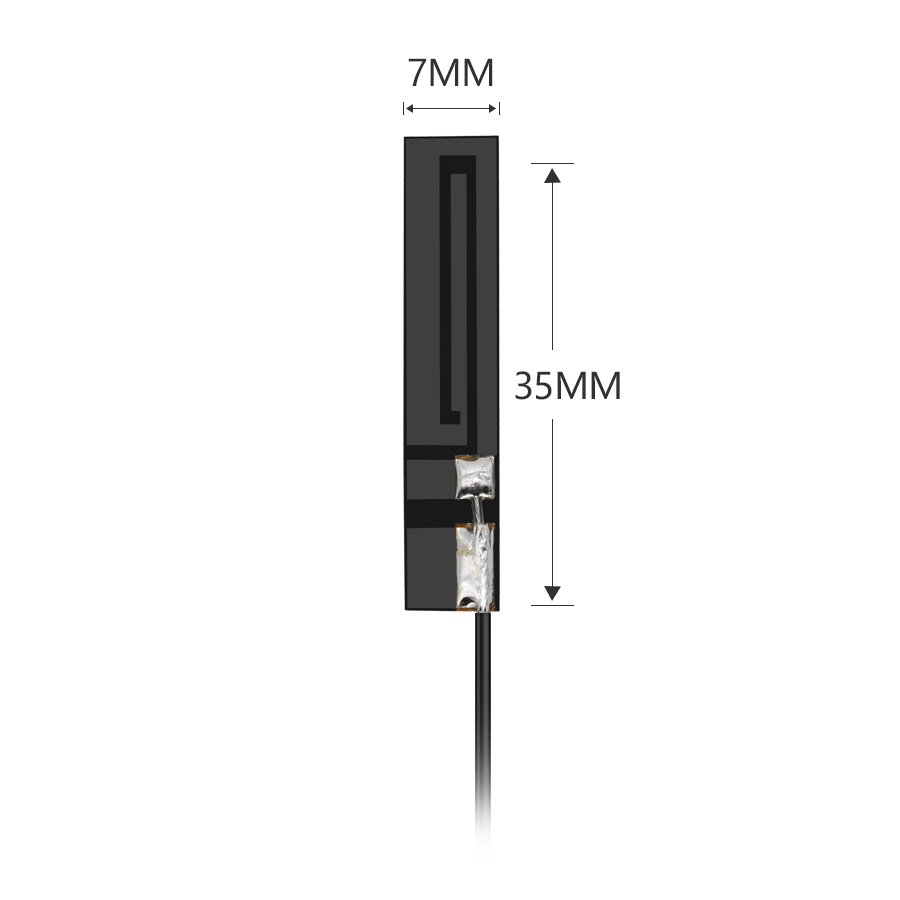

	Antenna size	35*7MM
	Cable type	RF1.13 cable
	Connector type	Ipex or optional
	Mounting method	Adhesive mount
Environmental	Operating temperature	-40℃~+80℃
	Storage temperature	-40℃~+85℃
	Environmentally friendly	ROHS compliant
