2.4 Female to 3.5 Female 26.5GHz High Frequency Adapter

2.4 Female to 3.5 Female 26.5GHz High Frequency Adapter
2.4 Female to 3.5 Female 26.5GHz High Frequency Adapter
2.4 Female to 3.5 Female 26.5GHz High Frequency Adapter

Specification:

1. DC-26.5GHz

2. VSWR ＜ 1.15

3. Shell SUS316 stainless steel

4. Corrosion resistance / high and low temperature resistance

    Contact us
    Product Detail

    2.4 Female to 3.5 Female Adapter Specifications

    ITEM SPECIFICATION
     Frequency Range  DC - 26.5GHz
     VSWR  ＜1.15
     RF Leakage  < -100 dB
     Temperature Range  -160°C to 180°C

    2.4 Female to 3.5 Female Adapter Mechanical Specifications

    ITEM SPECIFICATION
     Housing Material  STEEL, CRES ALLOY UNS-30300 PER ASTM A582 PASSIVATED PER ASTM A967-99
     Contact  BeCu UNS-C17300 PER ASTM B196 GOLD PLATE PER MIL-DTL-45204
     Bead  VIRGIN PTFE FLUOROCARBON PER ASTM D1710, TYPE 1 GRADE 1, CLASS B
     Capture Bead  ULTEM 1000 PER ASTM D5205
     Retaining Ring  BeCu UNS C17200 PER ASTM B194 OR ASTM B197
     Gasket  SILICONE RUBBER PER ZZ-R-765

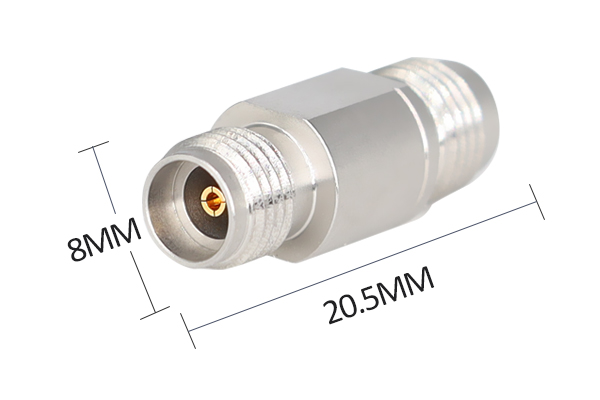

    2.4 Female to 3.5 Female Adapter Size

    1
